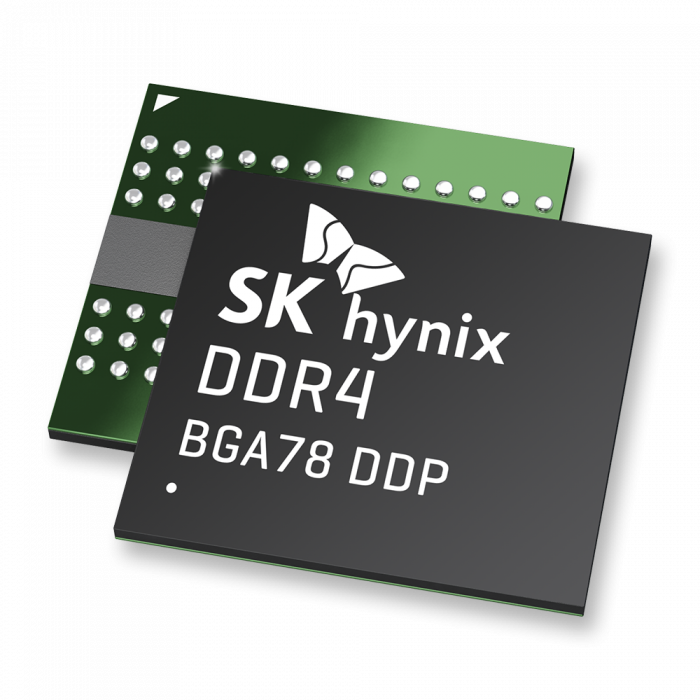

SK Hynix H5ANAG8NCMR-VKC

Leadtime
in stock
Qty in stock
988
Status
active
Datasheet

Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard. With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!

Manufacturer SK Hynix
Technology DDR4
Capacity 16Gb
Organization 2Gx8
Bus-Width x8
Package BGA DDP
Pin/Ball Count 78
Voltage 1.2V
Max. Clock-Speed 1333 MHz
Max. Data-Rate 2666 MT/s
Temperature Range 0 to 95°C TC
Automotive No
RoHS-Compliant Yes
HTN Code 85423239
ECCN Code EAR99
SPQ Tray Box 1600 pcs
SPQ Tray 160 pcs

The H5ANAG8NCMR-VKC is a DDR4 DRAM memory manufactured by SK Hynix made for an operating temperature of 0 to 95°C TC. It has a memory-capacity of 16Gb and is organized as 2Gx8 coming in a RoHS-compliant BGA DDP 78 Pins package. The data-rate is specified with 2666 MT/s reflecting a max clock-speed of 1333 MHz and a minimum clock cycle time of . The product is active and can be ordered from Memphis at any time.

Please contact us to request a quote or free samples.
