Micron MT41J512M4HX-15E:D

Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard. With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!

in stock
in Stock
Manufacturer Micron
Technology DDR3
Capacity 2Gb
Organization 512Mx4
Bus-Width x4
Package BGA
Pin/Ball Count 78
Voltage 1.5V
Min. Cycle Time 1.499ns
Max. Clock-Speed 667 MHz
Max. Data-Rate 1333 MT/s
Temperature Range 0 to 85°C TC
Automotive No
RoHS-Compliant Yes
HTN Code 85423239

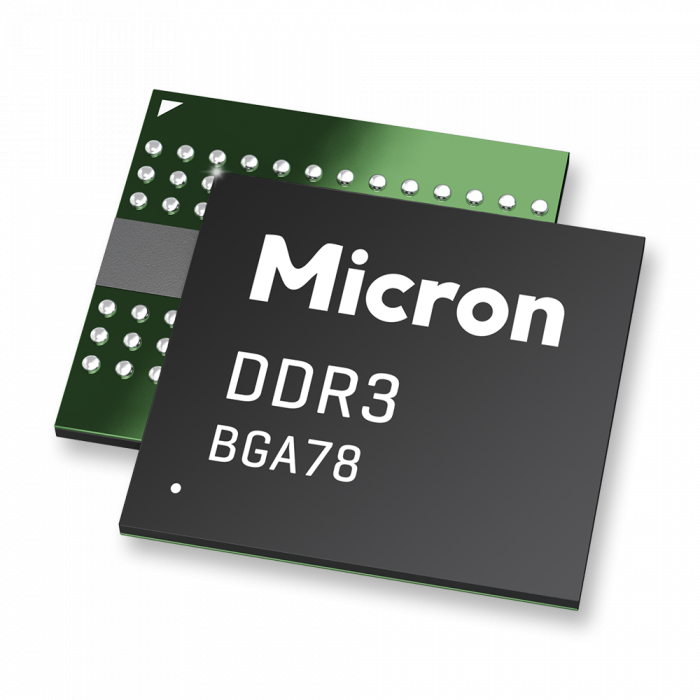

The MT41J512M4HX-15E:D is a DDR3 DRAM memory manufactured by Micron made for an operating temperature of 0 to 85°C TC. It has a memory-capacity of 2Gb and is organized as 512Mx4 coming in a RoHS-compliant BGA 78 ball package. The data-rate is specified with 1333 MT/s reflecting a max clock-speed of 667 MHz and a minimum clock cycle time of 1.499ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.

Please contact us to request a quote or free samples.
