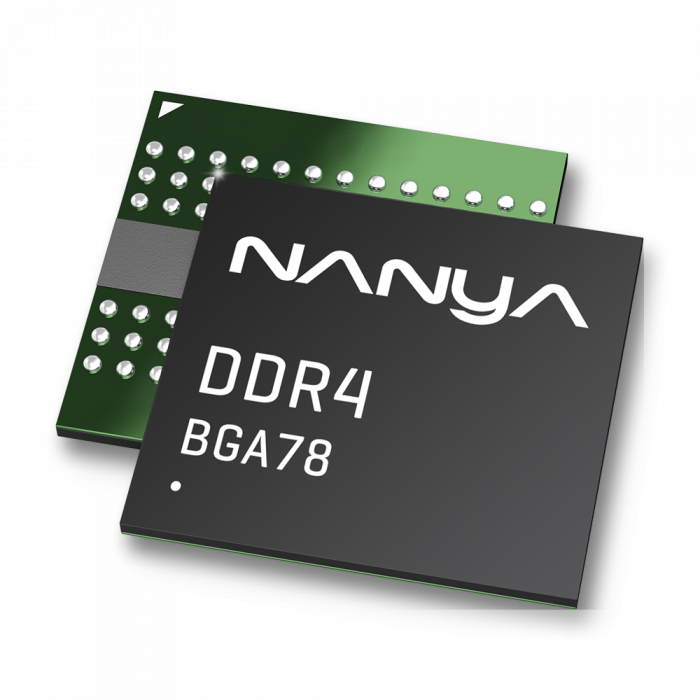

Nanya NT5AD1024M8A3-GZ

Leadtime
in stock
Qty in stock
6
Status
EOL
Datasheet

Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard. With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!

Manufacturer Nanya
Technology DDR4
Capacity 8Gb
Organization 1Gx8
Bus-Width x8
Package BGA
Pin/Ball Count 78
Voltage 1.2V
Min. Cycle Time 0.833ns
Max. Clock-Speed 1200 MHz
Max. Data-Rate 2400 MT/s
Temperature Range 0 to 95°C TC
Automotive No
RoHS-Compliant Yes
HTN Code 85423239
ECCN Code EAR99
SPQ Tray Box 2090 pcs
SPQ Tray 209 pcs

The NT5AD1024M8A3-GZ is a DDR4 DRAM memory manufactured by Nanya made for an operating temperature of 0 to 95°C TC. It has a memory-capacity of 8Gb and is organized as 1Gx8 coming in a RoHS-compliant BGA 78 ball package. The data-rate is specified with 2400 MT/s reflecting a max clock-speed of 1200 MHz and a minimum clock cycle time of 0.833ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.

Please contact us to request a quote or free samples.
