Nanya NT6AN128T32AV-J2

Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard. With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!

Leadtime
in stock
in Stock
no
Status
active
Manufacturer Nanya
Technology LPDDR4
Capacity 4Gb
Organization 128Mx32
Bus-Width x32
Package BGA
Pin/Ball Count 200
Voltage VDD1:1.8V/VDD2:1.1V/VDDQ:1.1V
Min. Cycle Time 0.536ns
Max. Clock-Speed 1866 MHz
Max. Data-Rate 3733 MT/s
Temperature Range -30 to 105°C TC
Automotive No
RoHS-Compliant Yes
HTN Code 85423239
ECCN Code EAR99
SPQ Tray Box 1280 pcs
SPQ Tray 128 pcs

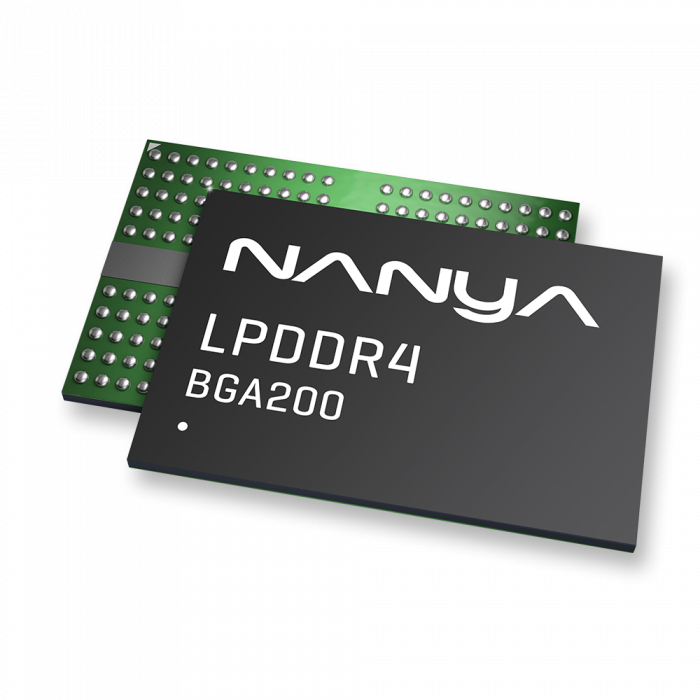

The NT6AN128T32AV-J2 is a LPDDR4 DRAM memory manufactured by Nanya made for an operating temperature of -30 to 105°C TC. It has a memory-capacity of 4Gb and is organized as 128Mx32 coming in a RoHS-compliant BGA 200 ball package. The data-rate is specified with 3733 MT/s reflecting a max clock-speed of 1866 MHz and a minimum clock cycle time of 0.536ns. The product is active and can be ordered from Memphis at any time.

Please contact us to request a quote or free samples.
