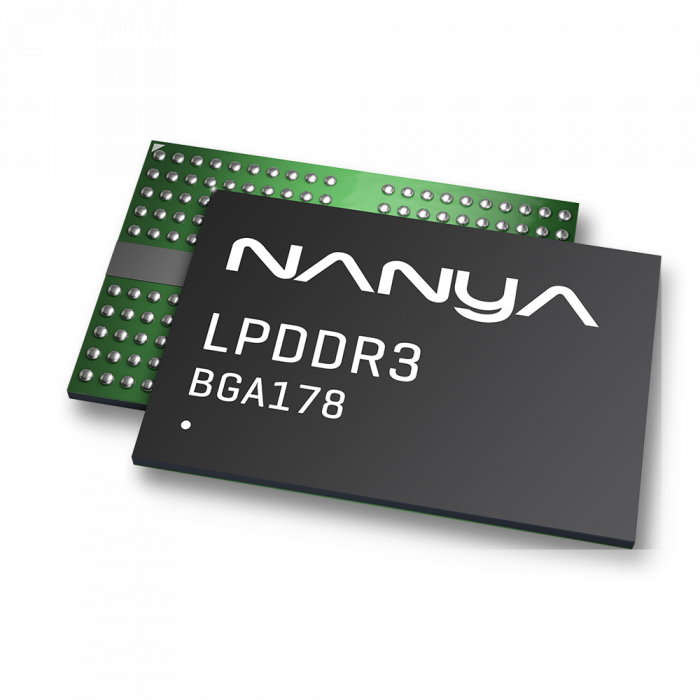

Nanya NT6CL256M32AM-H0

Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard. With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!

in stock
in Stock
Manufacturer Nanya
Technology LPDDR3
Capacity 8Gb
Organization 256Mx32
Bus-Width x32
Package BGA
Pin/Ball Count 178
Voltage VDD1:1.8V/VDD2:1.2V/VDDQ:1.2V
Min. Cycle Time 0.938ns
Max. Clock-Speed 1066 MHz
Max. Data-Rate 2133 MT/s
Temperature Range -30 to 105°C TC
Automotive No
RoHS-Compliant Yes
HTN Code 85423239
SPQ Tray Box 1680 pcs
SPQ Tray 168 pcs

The NT6CL256M32AM-H0 is a LPDDR3 DRAM memory manufactured by Nanya made for an operating temperature of -30 to 105°C TC. It has a memory-capacity of 8Gb and is organized as 256Mx32 coming in a RoHS-compliant BGA 178 ball package. The data-rate is specified with 2133 MT/s reflecting a max clock-speed of 1066 MHz and a minimum clock cycle time of 0.938ns. The product is active and can be ordered from Memphis at any time.

Please contact us to request a quote or free samples.
