Nanya NT6TL128M32BI-G0

Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard. With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!

Leadtime
in stock
in Stock
no
Status
EOL
Manufacturer Nanya
Technology LPDDR2
Capacity 4Gb
Organization 128Mx32
Bus-Width x32
Package BGA
Pin/Ball Count 134
Voltage 1.2V
Min. Cycle Time 1.876ns
Max. Clock-Speed 533 MHz
Max. Data-Rate 1066 MT/s
Temperature Range -25 to 105°C TC
Automotive No
RoHS-Compliant Yes
HTN Code 85423239
ECCN Code EAR99
SPQ Reel 1000 pcs
SPQ Tray Box 1680 pcs
SPQ Tray 168 pcs

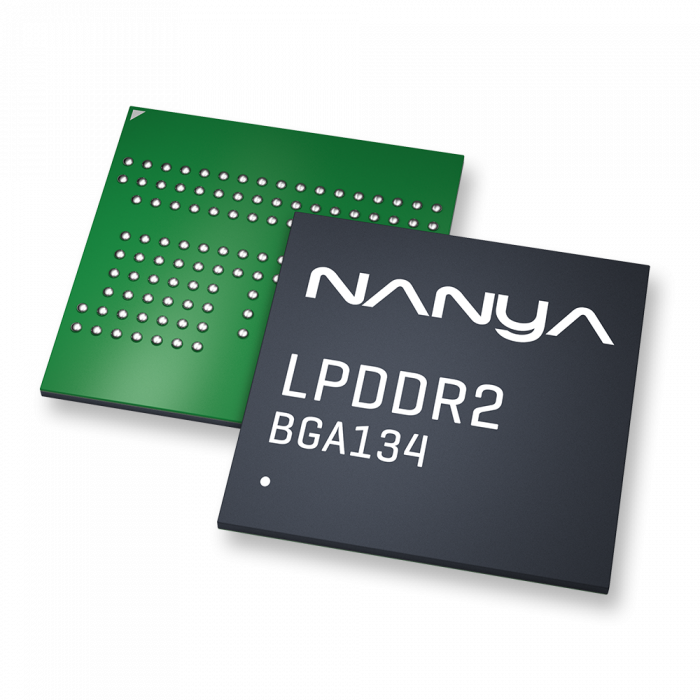

The NT6TL128M32BI-G0 is a LPDDR2 DRAM memory manufactured by Nanya made for an operating temperature of -25 to 105°C TC. It has a memory-capacity of 4Gb and is organized as 128Mx32 coming in a RoHS-compliant BGA 134 ball package. The data-rate is specified with 1066 MT/s reflecting a max clock-speed of 533 MHz and a minimum clock cycle time of 1.876ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.

Please contact us to request a quote or free samples.
