Nanya NT6TL256T32BQ-G0
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
yes
Status
active
Manufacturer
Nanya
Technology
LPDDR2
Capacity
8Gb
Organization
256Mx32
Bus-Width
x32
Package
BGA DDP
Pin/Ball Count
168
Voltage
1.2V
Min. Cycle Time
1.876ns
Max. Clock-Speed
533 MHz
Max. Data-Rate
1066 MT/s
Temperature Range
-25 to 105°C TC
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423239
ECCN Code
EAR99
SPQ Reel
1000 pcs
SPQ Tray Box
1680 pcs
SPQ Tray
168 pcs

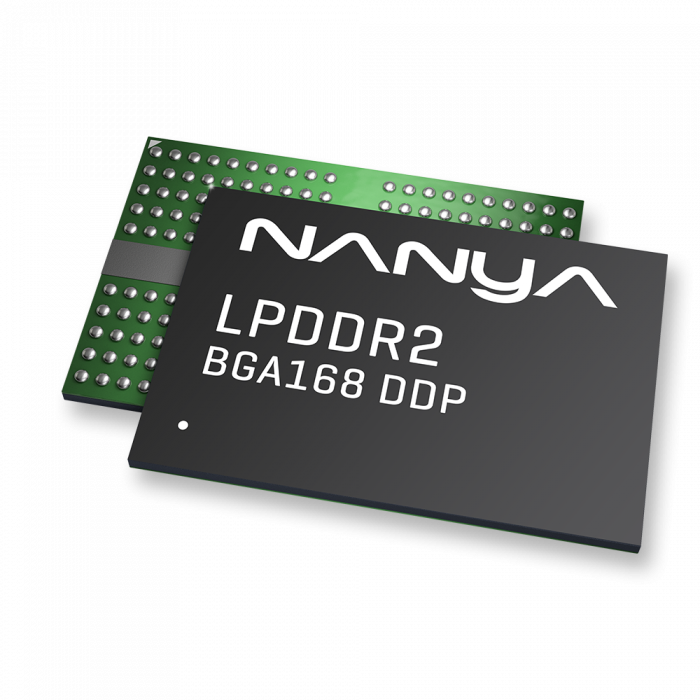

The NT6TL256T32BQ-G0 is a LPDDR2 DRAM memory manufactured by Nanya made for an operating temperature of -25 to 105°C TC. It has a memory-capacity of 8Gb and is organized as 256Mx32 coming in a RoHS-compliant BGA DDP 168 Pins package. The data-rate is specified with 1066 MT/s reflecting a max clock-speed of 533 MHz and a minimum clock cycle time of 1.876ns. The product is active and can be ordered from Memphis at any time.
Please contact us to request a quote or free samples.
